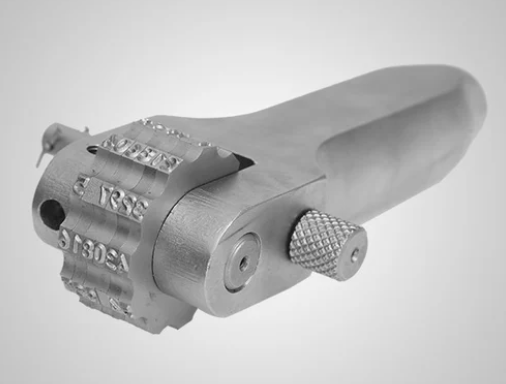

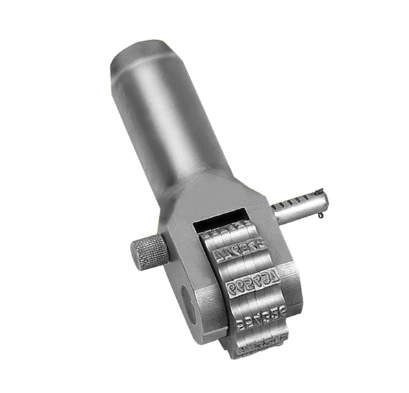

Rotary Type Numerator (RTN)

The Rotary Type Numerator is a versatile tool for marking serial numbers and other data on metal parts. It features a manual wheel changing mechanism, allowing for precise control over the marking process.

Features

• High-Quality Wheel Types: Made from premium tool steel for enhanced durability.
• Manual Wheel Changing Mechanism: Provides flexibility in setting and changing markings.
• Multi-Face Marking Wheels: Each wheel has 11 faces with figures 0 to 9 on ten faces, and one blank face.
• Secure Locking Mechanism: Marking wheels can be rotated to any desired position and locked securely with a locking pin.
• Compact and Sturdy: The unit is complete, compact, and ready to use without loose parts.
• Durable Finish: All parts are specially heat-treated and nickel-plated for a dull finish.
• High Performance: Built for an extended lifespan.
• Customizable Combinations: Available in alpha-numeric and special wheel combinations to suit various needs.
• Logo and Fixed Data Marking: Provision for marking logos or fixed letters along with numbers.
• Special Wheels for Hot Stamping: Available upon request.
• Customization for Different Press Types: Can be modified for use with impact, hydraulic, or fly presses.
• Individual Wheel Release: Allows for the release of one wheel at a time without disturbing the setup of other wheels.

Sizes

Size	4 Wheels	5 Wheels	6 Wheels
2 mm	4RTN2	5RTN2	6RTN2
3 mm	4RTN3	5RTN3	6RTN3
4 mm	4RTN4	5RTN4	6RTN4
5 mm	4RTN5	5RTN5	6RTN5

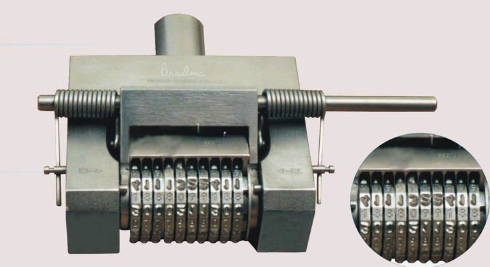

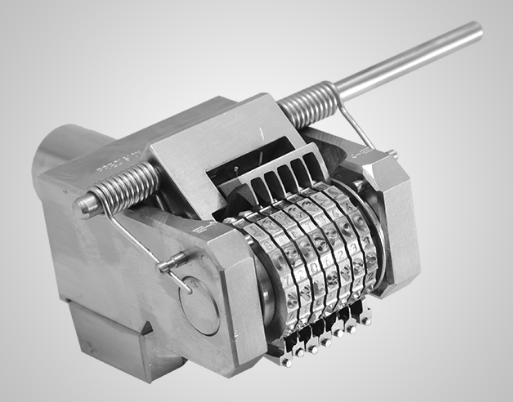

Automatic Numerator

The Automatic Numerator is an efficient tool designed for marking serial numbers on metal parts through a simple operation. Its special design ensures that numbers advance accurately and automatically, one at a time, providing perfectly aligned, evenly spaced, and uniformly deep impressions on each component.

Features

• High-Quality Type Wheels: Made from premium tool steel, ensuring durability and longevity.
• Automatic Wheel Changing Mechanism: Provides seamless and automatic advancement of numbers.
• Durable CAMS: Advancing CAMS are machined into solid wheels and made from the same durable material as the stamping characters.
• Extended Wheel Life: Extra-wide unit wheels for prolonged usage.
• Solid Actuating Pawl: One-piece actuating pawl machined from a solid bar for robustness.
• Direct-Reading Characters: Facilitates easy setup and verification.
• Ease of Maintenance: No riveted assembly allows for easy dismantling and cleaning by the user.
• Unique Holding Catch and Springs: Designed for optimal performance.
• Customizable Wheel Combinations: Available in alpha-numeric and special combinations to meet customer requirements.
• High Performance: Built for longer life and reliable performance.
• Special Features: Options for marking logos or fixed data along with serial numbers, as well as heater arrangements for hot foil stamping.
• Custom Font Sizes: Available upon request.

Sizes

Size	6 Wheels	7 Wheels	8 Wheels	9 Wheels	10 Wheels
2 mm	6AN020	7AN020	8AN020	9AN020	10AN020
3 mm	6AN030	7AN030	8AN030	9AN030	10AN030
4 mm	6AN040	7AN040	8AN040	9AN040	10AN040
5 mm	6AN050	7AN050	8AN050	9AN050	10AN050
6 mm	6AN060	7AN060	8AN060	9AN060	10AN060
8 mm	6AN080	7AN080	8AN080	9AN080	10AN080
10 mm	6AN100	7AN100	8AN100	9AN100	10AN100
12 mm	6AN120	7AN120	8AN120	9AN120	10AN120
15 mm	6AN150	7AN150	8AN150	9AN150	10AN150
18 mm	6AN180	7AN180	8AN180	9AN180	10AN180
